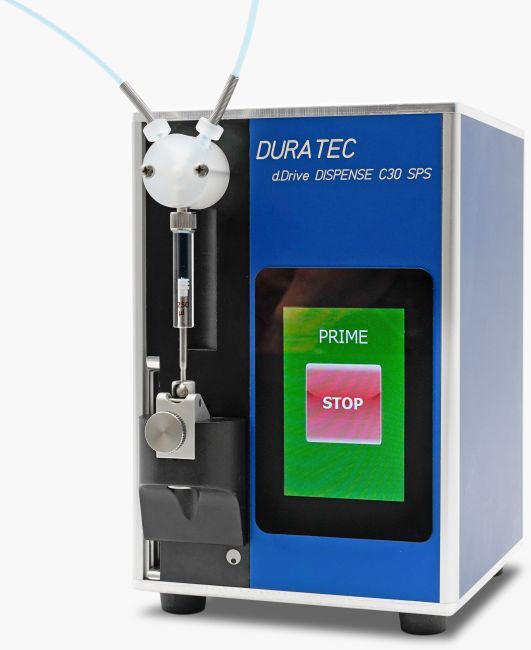

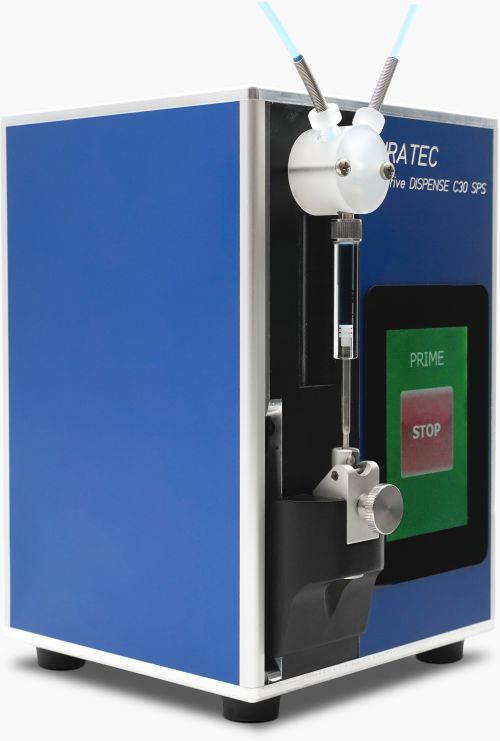

d.Drive DISPENSE C30

The d.Drive DISPENSE C30 SPS is a compact and very precise pump module designed for liquid handling applications in the range of 250 nl to 12.5 ml.

Exact dosing from µl to ml

The dispenser is suitable for a variety of different media (aqueous, organic, aggressive, highly viscous, gaseous). The wetted parts are made of borosilicate glass, PTFE and PCTFE in the standard version.

The module can be controlled manually via a touch display, computer-aided via RS232 or using a PLC via the I/O interface.

Operating principle

The active valve switches to the input port. The syringe (self-priming) will be completely filled via the LOAD command. With the 5 STEP functions, different doses with variable dosing parameters can be carried out several times in succession.

By changing the dosing parameters, the flow and dosing characteristics of the respective medium can be modified for optimal dosing.

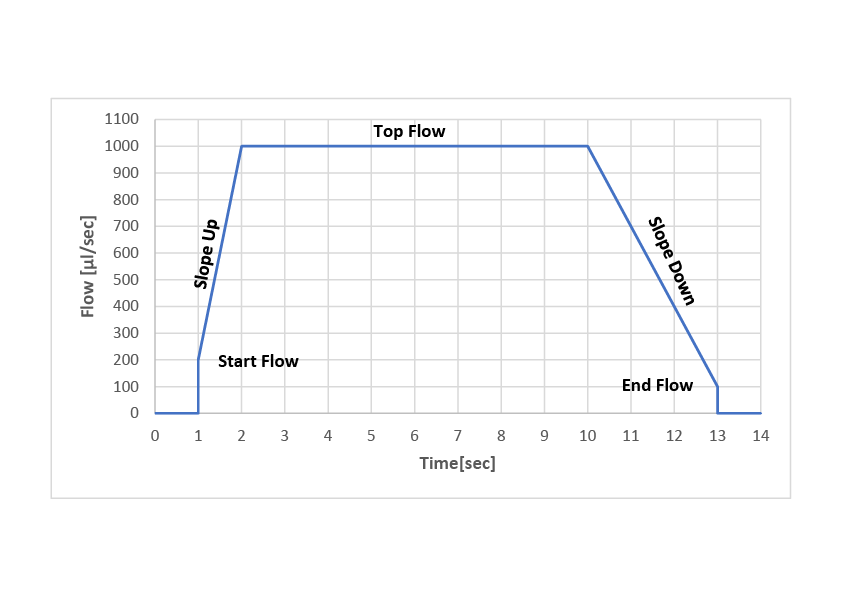

Dosing parameters:

Volume
Dosing flow rate (TopFlow)
Start speed (StartFlow)
Acceleration at the start of dosing (Slope Up)
Deceleration at the end of dosing (Slope Down)
End speed (EndFlow)

d.Drive DISPENSE application

Exact dosing from µl to ml

Operation

Touchdisplay

All functions of the dispenser can be controlled via touch panel on the front. It enables simple, intuitive and direct operation of the dosing unit. Relevant parameters can be easily configured and monitored.

Windows Software

The optional Windows software enables basically the same operation as the touch display.
Additional functions: units for flow rate, dosing volume and dosing time.

RS232 Protocol

The RS232 command protocol is also available for technically experienced users. The pump and the individual dosing modules to be controlled without special software.

I/O Interface

It is possible to control the unit via a process control system using the I/O port.

Application examples & special solutions for d.Drive DISPENSE

Pumping & Dosing

Order information

Product name	d.Drive DISPENSE C30
Part no.	900764-SPS
Dimensions	W: 135 x H: 200 x D: 130/170 mm
Weight	approx. 3 kg
Housing	anodized aluminum, stackable
Power supply	24 V / DC
Syringe	25 µl – 12,5 ml (wetted parts made of borosilicate glass/PTFE)
Dosing volume per individual dosing	250 nl – 12,5 ml (depending on assembled syringe volume)
Time for full stroke	1s -1h
Resolution	181.490 steps per full stroke
Pressure range	0 - 6 bar (depending on syringe size)
Valve	3/2 port with ¼-28 UNF connection (wetted parts made of PTFE/PCTFE)
Fluid path	Borosilicate glass, PTFE, PCTFE
Control unit	Touch panel; serial via RS232; I/O port for TTL signals
Delivery includes	Drive DISPENSE C30 1x Valve (3-2 port) PTFE/PCTFE, ¼-28-UNF (already pre-assembled) 24 V/DC power supply (without syringes, tubing, software)
Additionally required (not included in delivery)	1 Syringe (must be ordered separately) Priming & dispensing tube (must be ordered separately)

Accessories & Consumables

for d.Drive DISPENSE C30

Accessories

An error occurred while loading the table.


Category	Description	P/N

FAQ

What pressures can be realized with the dispenser?

The pressure range depends on the syringe size.

Syringe
	Pressure [bar] max
	25 µl	6,0
50 µl	6,0
100 µl	6,0
250 µl	6,0
500 µl	6,0
1 ml	6,0
2,5 ml	6,0
5 ml	6,0
10 ml	4,1
12,5 ml	1,6

Chemical resistance information

The dispenser is suitable for a wide range of different media (aqueous, organic, aggressive, highly viscous, gaseous), the wetted parts are made of borosilicate glass, PTFE, PCTFE and PEEK in the standard version.

Downloads

	Document	Link
	d.Drive DISPENSE 30 Flyer	Download
	d.Drive DISPENSE C30 Manual	Download
