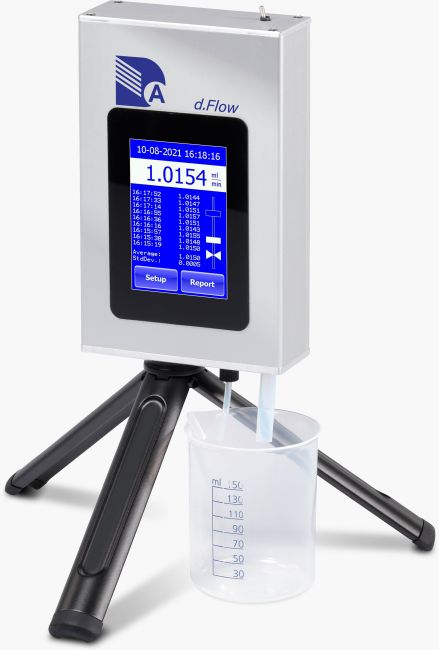

Flowmeter d.Flow

The flowmeter is especially designed for checking the accuracy and fluctuation of HPLC or dosing pumps. The device is calibrated and traceable according to DKD or NIST.

Reliable and accurate flow rate measurements

The flowmeter d.Flow determines the actual flow rate of a liquid flow. For this purpose, the time to fill a measuring tube with constant volume is determined. The display shows the measured value and the filling level. The measured values could be logged or transmitted directly via RS232.

Features

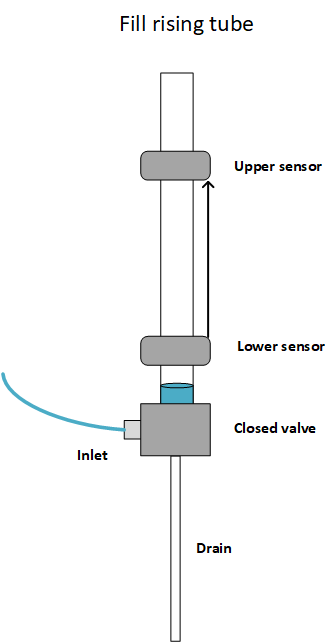

The measurement is volumetric by opto-electronic detection of the liquid level in a rising pipe. The time that passes between reaching a lower and an upper level is being measured and the flow is being calculated. After the upper level has been reached, the rising pipe will be drained via a magnetic valve and the measurement can start again.

Density and temperature of the medium do not matter due to the volumetric measuring principle. Due to the low surface tension, water, ethanol or methanol are recommended.

Advanced features

Detailed measurement protocol

Printing function

Data logger

Data transfer to PC

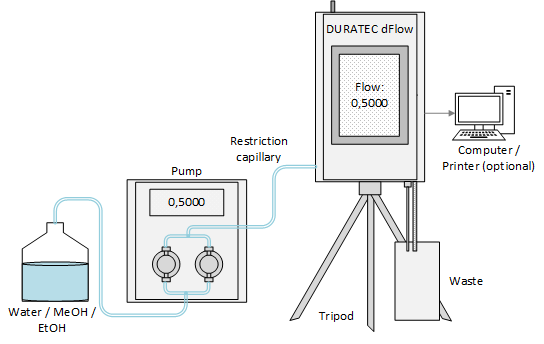

Application examples for d.Flow

Order information

d.Drive PUMP C30
d.Drive PUMP X60
Part no.Description
792625

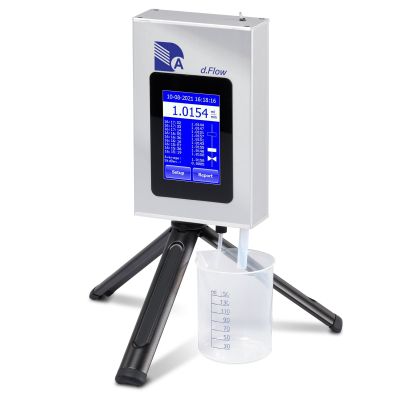

Flowmeter d.Flow with tripod, power supply, waste cup, manual, certificate (with 3-point calibration), transport case

792615-28

Thermoprinter for flowmeter with power supply and RS232 connection cable

792615-CAL

3-point recalibration incl. certificate

792615-CAL-4

4-point recalibration incl. certificate

792615-CAL-5

5-point recalibration incl. certificate

792615-CAL-6

6-point recalibration incl. certificate

Specifications

Packing list

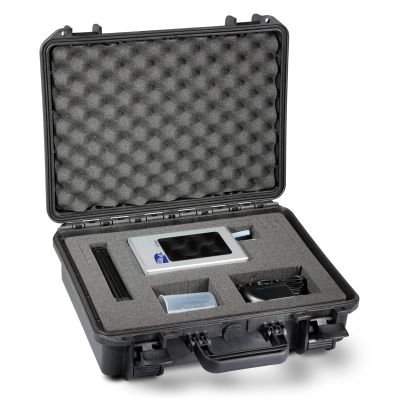

1x Flowmeter d.Flow with tripod, power supply, waste cup, manual, certificate (with 3-point calibration), transport case

Fluid path

PEEK, PTFE, FEP, EPDM

Flow range

0.05 ml/min - 20 ml/min

Measuring principle

volumetric

Measuring volume

approx. 240 µl

Accuracy

better 1% (measuring range 0.1 - 10.0 ml/min)*

Reproducibility

better 1% (measuring range 0.1 - 10.0 ml/min)*

Resolution

0,0001 ml/min

Display

3.5“ touch display (LCD-TFT)

Output

RS232 interface

Power supply

24 V/DC

Dimensions

Flowmeter: W: 105 mm / H: 170 mm / D: 40 mm (without tripod)
Case: W: 420 mm / H: 360 mm / D: 135 mm

Weight

approx. 3.1 kg (incl. case and accessories)

*based on water as reference medium

FAQ

Which media can be used for the measurement?

The measurement performs most effectively with water. Methanol and ethanol are also suitable media.

How frequently does the flowmeter need to be checked?

If you are using the flowmeter as a testing device, we recommend sending the device for inspection once a year. This will ensure that the measurement results are correct.

Which testing standard is used to check the flowmeters?

The flowmeters are checked according to a special DURATEC work specification. The test equipment used for this process is traceable according to DKD or NIST.

Downloads

DocumentLink
DURATEC d.Flow Flyer
Download
Calibration certificate
Download
DURATEC Recalibration formular
Download
DURATEC d.Flow manual
Download
