The Microlab® 600 is a highly precise syringe pump with a touchscreen interface designed to quickly and easily dilute and dispense fluids. This positive displacement system provides better than 1% accuracy, independent of a liquid’s viscosity, vapor pressure, and temperature.

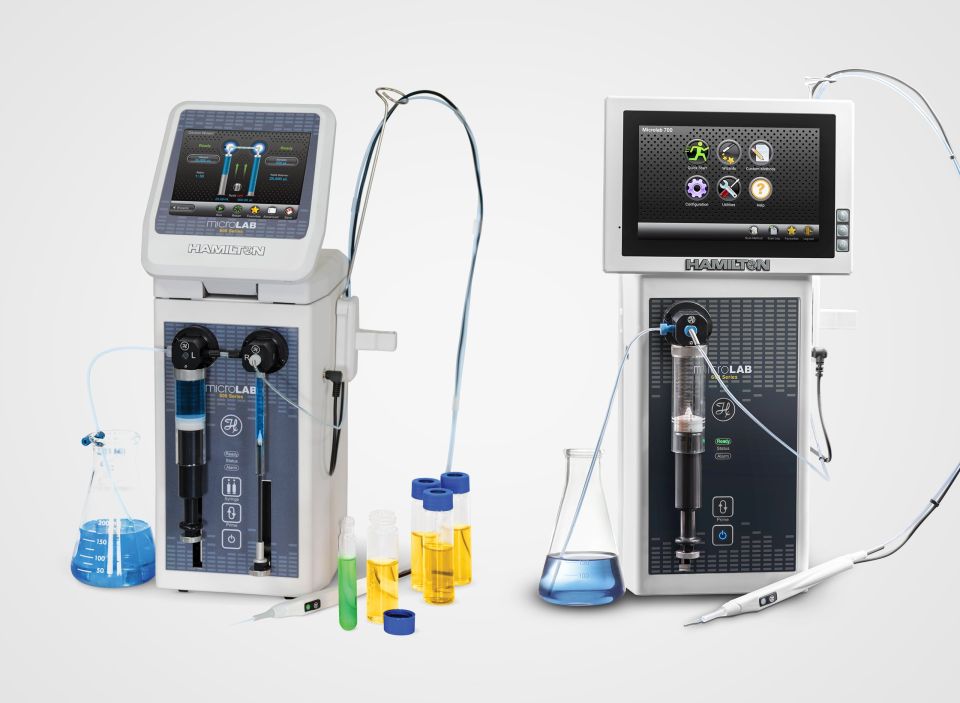

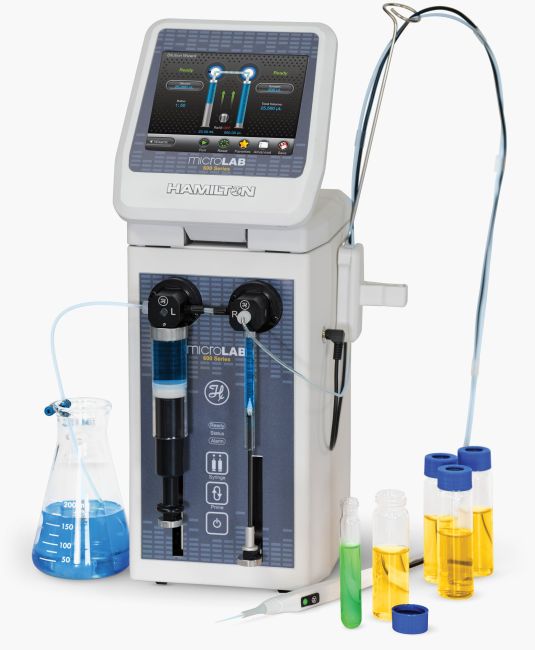

Microlab 600 with Controller

Increase accuracy and performance

Every laboratory has tasks too small to automate and too large to reliably accomplish by hand. The Microlab 600 is a semi-automated liquid handler designed specifically for these in-between applications that increase throughput  and consistency while reducing cost and wasted buffer.

Common industries that use MICROLAB equipment:

  • Food & Beverages
  • Environmental Analysis
  • Mining
  • Manufacturing

Support in daily laboratory routine

The Microlab 600 offers labs a way to securely monitor processes and greatly increase efficiency. No more adjusting pipettes and recalculating dilutions. Quickly recall stored dispenses and dilutions with Favorites. Trigger the hand probe or tap the foot switch to actuate the syringe drives according to a predefined program. These are just some of the conveniences of the Microlab 600. A few more:

  • Reduce time preparing samples or dispensing reagents
  • Minimize experimental variation from one user to the next
  • Manage log files from any PC
  • Comply with EPA, FDA GLP and GMP, 21 CFR Part 11, and ISO
  • N.I.S.T. traceable calibration

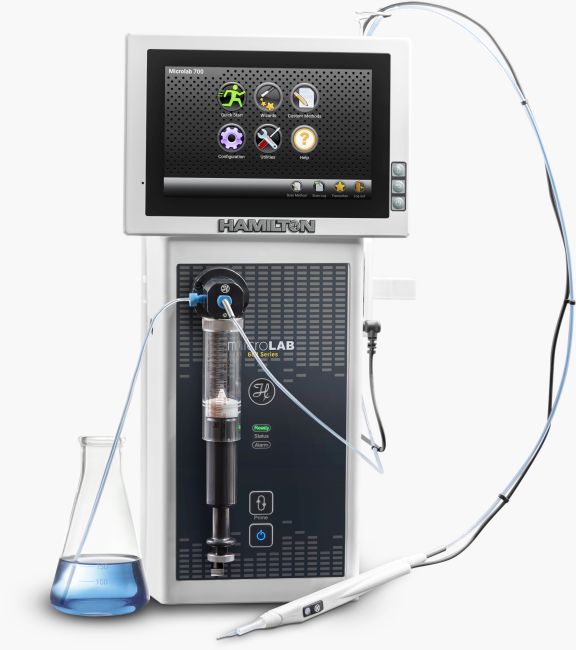

New – Microlab 700



Fast, accurate and reproducible dilutions - regardless of viscosity, vapor pressure or temperature.

Dual Syringe Dilutor

The Dual Syringe Diluter configuration uses two syringes to create up to a 1:50,000 dilution in a single step, drastically reducing preparation time and wasted buffer. The diluent washes the tubing between each sample, minimizing carryover for even the most sensitive techniques including AA, ICP, HPLC, GC, Photometry, Enzyme testing

Dispenser – Single, Dual & Continuous

The Microlab 600 is able to dispense volumes from 100 nL to 50 mL. The Microlab 600 uses positive displacement syringes to accurately dispense volatile, viscous, and dense liquids independent of atmospheric influences. The inert fluid path is compatible with harsh chemicals, making the Microlab 600 the most reliable and robust dispensing system available.

Single Syringe Dispenser

Precision stepper motors automatically refill the syringe from a reservoir considerably improving speed and accuracy compared to traditional laboratory equipment like serological and repeating pipettes.

Dual Syringe Dispenser

The Dual Syringe Dispenser incorporates two syringe pumps to expand the instrument's capabilities.

  • Double throughput by dispensing into two containers at the same time
  • Double the volume or the speed of a dispense by dispensing from both syringes to the same container
  • Fill each syringe with a different liquid to create binary mixtures with different ratios of each liquid
  • Use one syringe for dilution and the other syringe for sample spiking

Continuous Dispenser

The Continuous Dispenser is designed for time critical applications requiring repetitive dispensing. One syringe fills while the other syringe dispenses so the instrument is always ready. Perfect for integration into semi-automated or fully automated manufacturing lines.

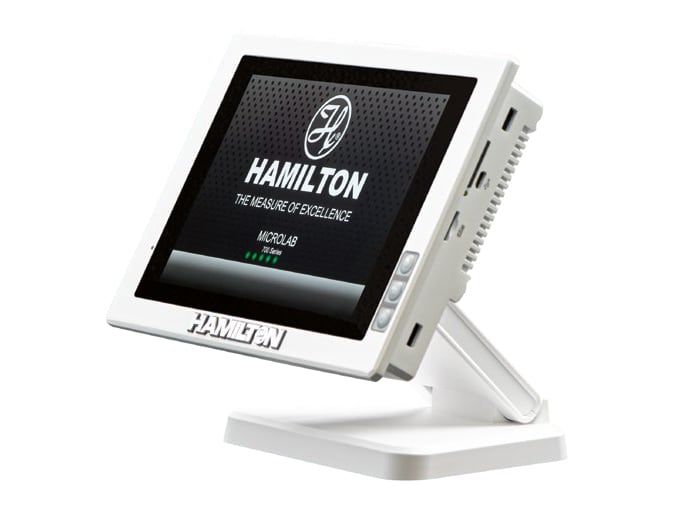

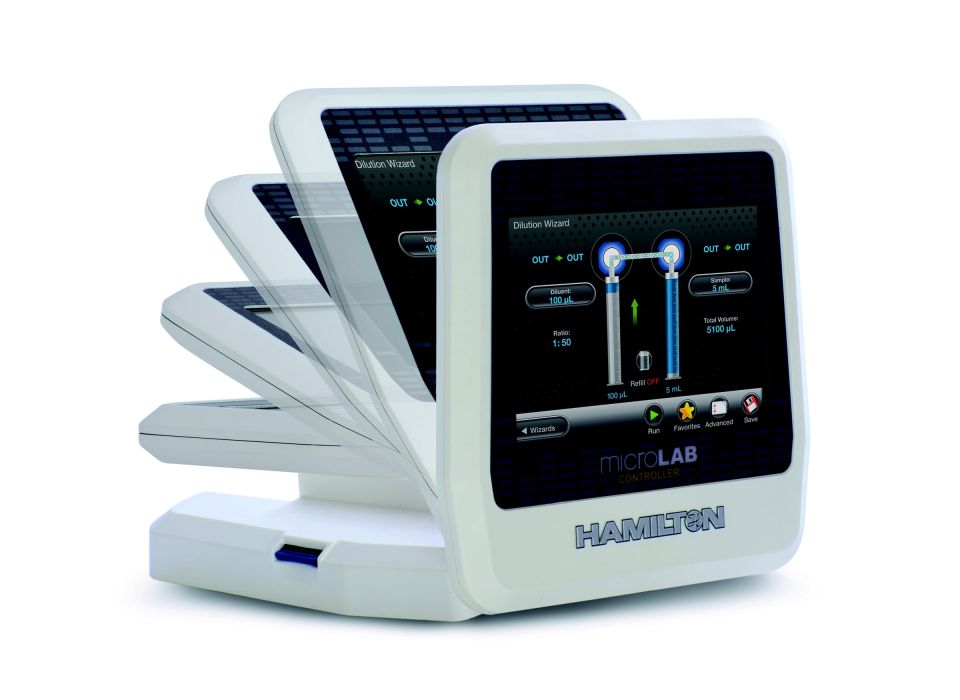

Controller with intuitive user interface

Microlab 600 (Basic & Advanced)

Microlab 700 (Advanced & Premium)

The different programs can be selected and configured via the control unit. In addition to the prefabricated programs of the wizard, customized programs can be created and saved. The programs are stored on a memory card and can be easily transferred to other devices.

User interface

  • Quick Start Run – for quick dilutions
  • Predefined methods - for dilution, aliquoting, serial dispensing, titration, pipetting
  • Customized methods - for individual processes
  • Compliance package - for user management & method logging (21 CFR Part 11)

Application examples for Microlab

Order information

  Microlab 600 & Basic Controller Microlab 600 & Advanced Controller Microlab 700 & Advanced Controller Microlab 700 & Premium Controller

Microlab 600 (no Controller)

Dual Syringe Dilutor

(Part no. HML615-DIL)

(Part no. HML625-DIL)

(Part no. H10103468)

(Part no. H10103471)


Single Syringe Dispenser

(Part no. HML610-DIS)

(Part no. HML620-DIS)

(Part no. H10103458)

(Part no. H10103460)

(Part no. HML630)

Dual Syringe Dispenser

(Part no. HML615-DIS)

(Part no. HML625-DIS)

(Part no. H10103461)

(Part no. H10103464)

(Part no. HML630)

Continuous Dispenser

(Part no. HML615-CNT)

(Part no. HML625-CNT)

(Part no. H10103465)

(Part no. H10103467)


Accessories for Microlab

Syringes, Valves, Tubes, Hand Probe, Printer for method logging and labelling, Barcode Scanner, RFID Reader

Microlab 500 accessories

Accessories & Consumables

An error occurred while loading the table.

Category Description P/N
Microlab 600 accessories

Accessories & Consumables

An error occurred while loading the table.

Category Description P/N
Microlab 700 accessories

Accessories & Consumables

An error occurred while loading the table.

Category Description P/N

For more information please visit the Hamilton Microlab website


HAMILTON Microlab 600 Flyer
HAMILTON Microlab 600 Manual Basic
HAMILTON Microlab 600 Manual Advanced
HAMILTON Microlab 700 Flyer
HAMILTON Microlab 700 Manual Advanced
HAMILTON Microlab Diluter vs Class A Glassware
HAMILTON LyncStore700 Manual
Microlab 600 Dilution of Metal Samples for Spectroscopic and Spectrometic Analysis using the Microlab 600 Diluter
Microlab 600 Forensic Application Note
Microlab 600 Predicted Dispense Volume vs Gravimetric Measurement
Microlab 600 Quick Start Guide
Microlab 600 RS 232 Communication Manual
Microlab 600 SaltLine Syringes
Microlab 600 Series GLP GMP Compliance Package
Microlab 600 Soil Analysis by Mehlich 3 Extractant Technique Using the Microlab 600 Diluter for Sample Preparation
Microlab 600 Using the Advanced Microlab 600 Diluter as a Versatile Tool for Handling Viscous Hyaluronic Acid Solutions
